G551D005-12x41-1.7-(15-50)-11

E-mail:

Tel:

Fax:

+86 532 66731599

Features:

· Wide Temperature

· Mini Size

· Fast Rise Time

· High Reliability

Inquire Now Download

Share To：

Product Details:

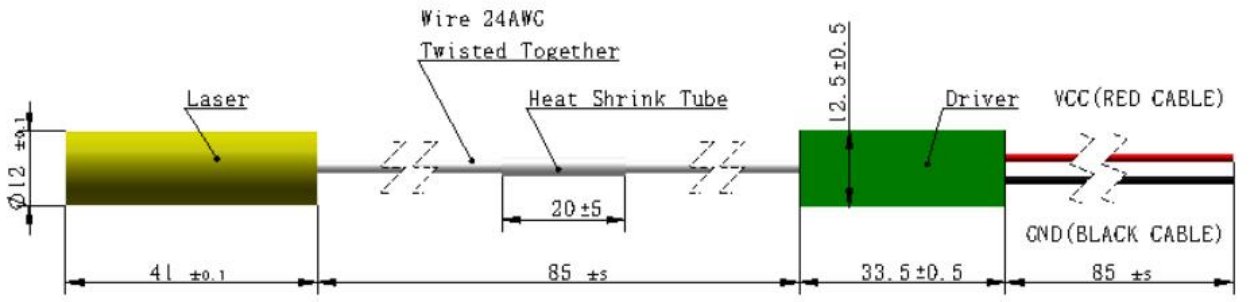

Dimensions (Unit: mm):

Product Specifications:

Specification	G551D005-12x41-1.7-(15-50)-11
Wavelength	551 ± 2 nm
Output Power	<5 mW
Spatial Mode	TEM00
Laser Class	3R
M² (Beam Quality)	1.2-1.4
Beam Asymmetry	≤ 1:1.2
Residual IR	4%
Beam Divergence (full-angle) (mrad)	＜2
Warm-Up Time (minutes)	＜ 2
Polarization Ratio	＞ 100:1
Laser Drive Modes	CW
Operating Temperature (℃)	15 to 50
Storage Temperature (℃)	-20 to 60
Driver Voltage (DC, V)	3 - 6
Weight (g)	≤ 20
Lifetime (hours) (MTTF at 25℃)	> 5000
