Product Details:

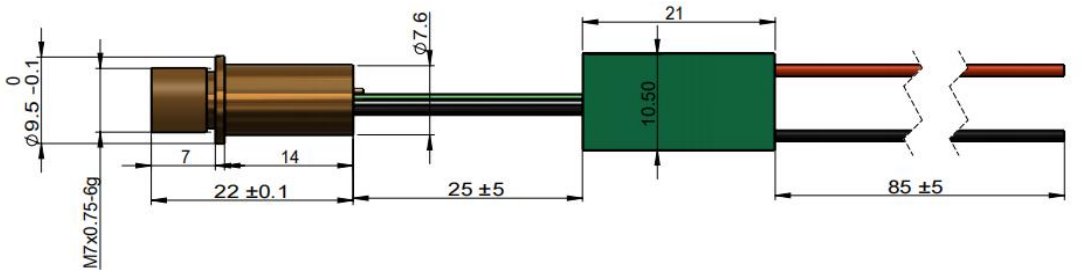

Dimensions (Unit: mm):
Product Specifications:
| Specification | G545D005-9.5x22-1.5-(-10-50)-10 |
| Wavelength | 545 ± 5 nm |
| Output Power | 1 - 5mW |
| Spatial Mode | TEM00 |
| Beam Asymmetry | ≤ 1:1 |
| Beam Divergence (full-angle) (mrad) | ＜1.5 |
| Warm-Up Time (seconds) | ＜ 1 |
| Laser Drive Modes | CW |
| Operating Temperature (℃) | -10 to 50 |
| Storage Temperature (℃) | -20 to 60 |

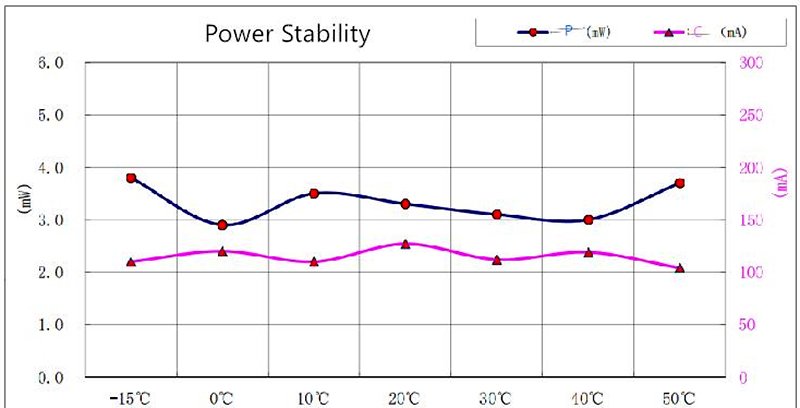

Output Power Stability Example:
