V405D075-66.8x23x22-2.0

Applications:

· Life Science

· Scientific Experiment

. Optical Instrument


Product Details:

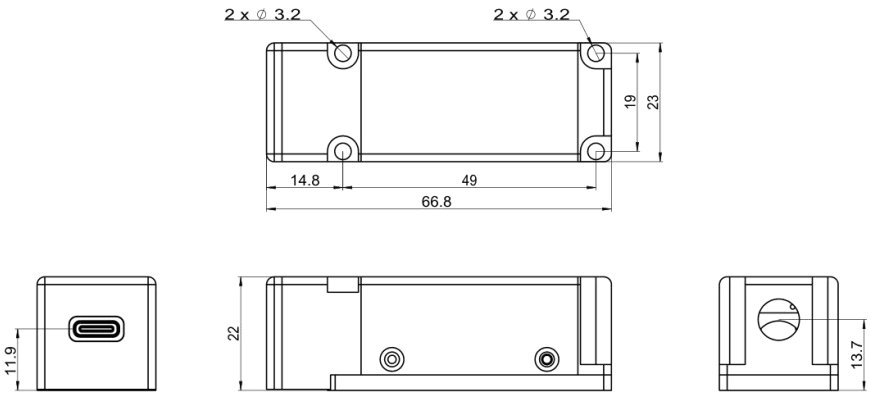

Dimensions (Unit: mm):



Product Specifications:


SpecificationV405D075-66.8x23x22-2.0
Wavelength405 ±5 nm
Output Power75mW
Spatial ModeTEM00
M² (Beam Quality)≤ 1.3
Beam Asymmetry≤ 1:1.2
Beam Diameter at 1/e² (mm)2
Beam Divergence (full-angle) (mrad)<2.0
Pointing Stability (>2h,  µrad/°C)± 2
RMS Noise (%) (20 Hz to 20 kHz)≤ 1
Peak-to -Peak Noise (%) (20 Hz to 20 kHz)≤ 3
Long-Term Power Stability (%) (8 hours)< 2
Warm-Up Time (minutes)< 5
Polarization Ratio> 100:1
Laser Drive ModesCW
Power Consumption (W)Typ. 2, Max. 5
Operating Temperature (℃)15 to 35
Storage Temperature (℃)0 to 40
Weight (g)≤ 100


Laser Driver:
