Applications:
· Life Science
· Scientific Experiment
. Optical Instrument
Contact Us
Product Details:

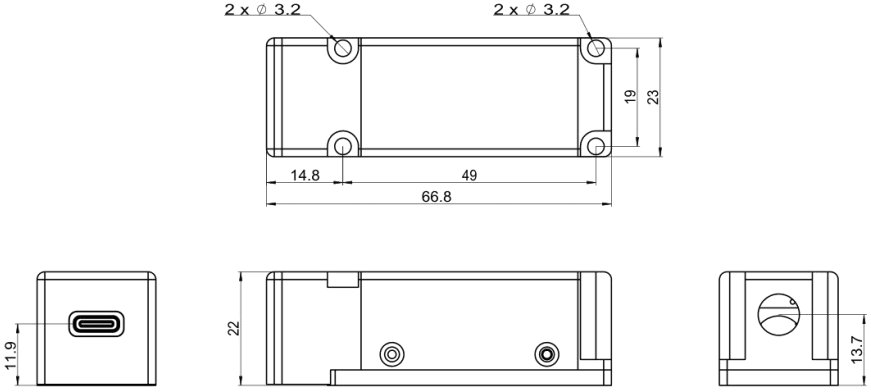

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y559D015-66.8x23x22-1.5 |
| Wavelength | 559 ±2 nm |
| Output Power | <20mW |
| Spatial Mode | TEM00 |
| M² (Beam Quality) | ≤ 1.3 |
| Beam Asymmetry | ≤ 1:1.05 |
| Beam Diameter at Output Window (mm) | 1.5 |
| Beam Divergence (full-angle) (mrad) | ＜1.5 |
| Pointing Stability (>2h, µrad/°C) | ± 2 |
| RMS Noise (%) (20 Hz to 20 kHz) | ≤ 1 |
| Peak-to -Peak Noise (%) (20 Hz to 20 kHz) | ≤ 3 |
| Long-Term Power Stability (%) (8 hours） | ＜ 2 |
| Warm-Up Time (minutes) | ＜ 5 |
| Polarization Ratio | ＞ 100:1 |
| Laser Drive Modes | CW |
| Power Consumption (W) | Typ. 5, Max. 12 |
| Operating Temperature (℃) | 15 to 35 |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | ≤ 100 |
Laser Driver:
