Features:
· Wide Temperature
· Mini Size
· Fast Rise Time
· High Reliability
Contact Us
551nm
Features:
· Wide Temperature
· Mini Size
· Fast Rise Time
· High Reliability
Product Details:

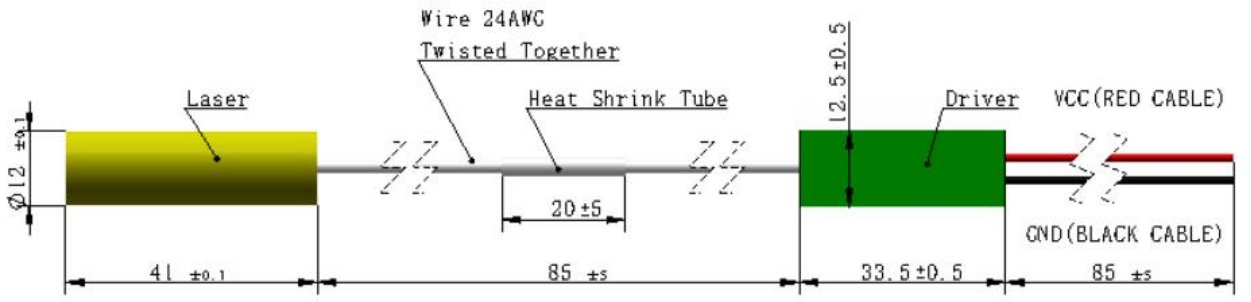

Dimensions (Unit: mm):
Product Specifications:
| Specification | G551D005-12x41-1.7-(15-50)-11 |
| Wavelength | 551 ± 2 nm |
| Output Power | <5 mW |
| Spatial Mode | TEM00 |
| Laser Class | 3R |
| M² (Beam Quality) | 1.2-1.4 |
| Beam Asymmetry | ≤ 1:1.2 |
| Residual IR | 4% |
| Beam Divergence (full-angle) (mrad) | ＜2 |
| Warm-Up Time (minutes) | ＜ 2 |
| Polarization Ratio | ＞ 100:1 |
| Laser Drive Modes | CW |
| Operating Temperature (℃) | 15 to 50 |
| Storage Temperature (℃) | -20 to 60 |
| Driver Voltage (DC, V) | 3 - 6 |
| Weight (g) | ≤ 20 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
