532nm

1
1

532nm

Features:

· Wide Temperature

· Mini Size

· Fast Rise Time

· High Reliability

Product Details:

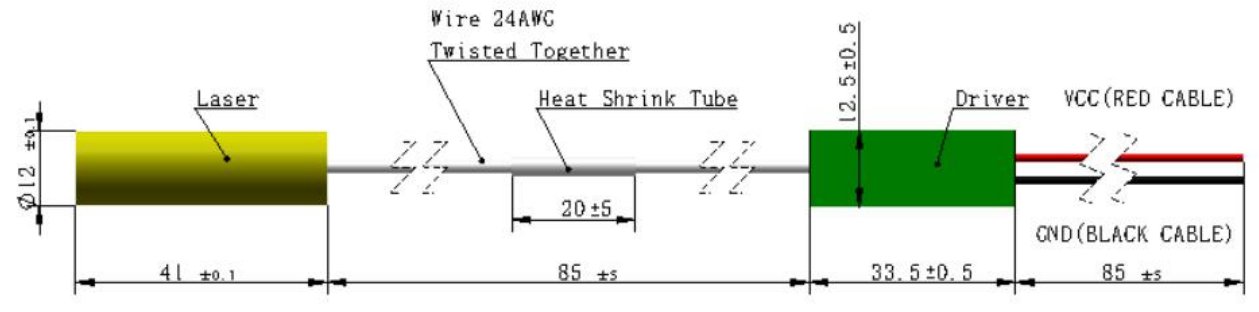

Dimensions (Unit: mm):




Product Specifications:


SpecificationG532D005-12x41-1.7-(15-50)-11
Wavelength532 ±2 nm
Output Power<5mW
Spatial ModeTEM00
M² (Beam Quality)1.2-1.4
Beam Asymmetry≤ 1:1
Residual IR<4%
Beam Divergence (full-angle) (mrad)<2
Rise Time (Seconds)<2
Polarization Ratio>100:1
Laser Drive ModesCW
Power Consumption (W)Typ. 116, Max. 150
Operating Temperature (℃)15 to 50
Storage Temperature (℃)-20 to 60
LD Voltage (DC, V)<6
Weight (g)≤ 20
Lifetime (hours) (MTTF at 25℃)>5000
