Features:
· Small Size
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Contact Us
545nm
Features:
· Small Size
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Product Details:

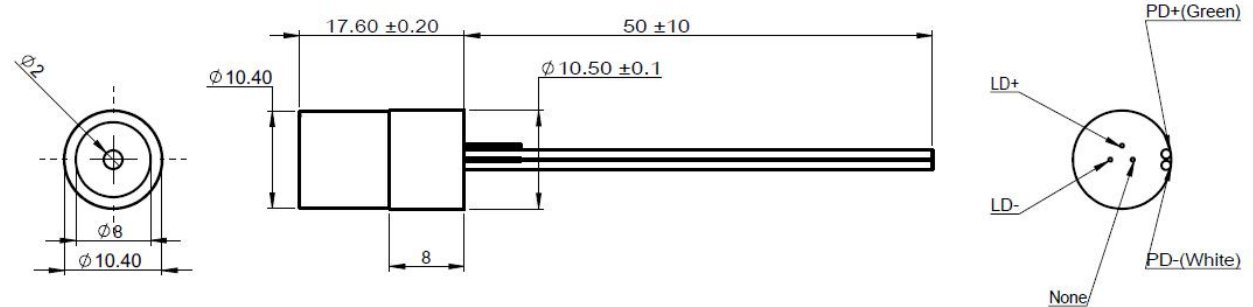

Dimensions (Unit: mm):
Product Specifications:
| Specification | G545D010-11x18-15-(10-40)-00 |
| Wavelength | 545 ± 2 nm |
| Output Power | 10 mW ± 0.5 mW |
| Spatial Mode | TEM00 |
| Laser Class | 3B |
| M² (Beam Quality) | <1.4 |
| Beam Size at 10m (mm) | <180 |
| Beam Asymmetry | ≤ 1:1 |
| Residual IR | 1% |
| Beam Divergence (full-angle) (mrad) | ＜18 |
| Warm-Up Time (seconds) | ＜ 0.5 |
| Polarization Ratio | ＞ 100:1 |
| Laser Drive Modes | CW |
| Operating Temperature (℃) | -10 to 40 |
| Storage Temperature (℃) | -20 to 60 |
| Weight (g) | ≤ 6.9 |
| Lifetime (hours) (MTTF at 25℃) | >5000 |
