Product Details:

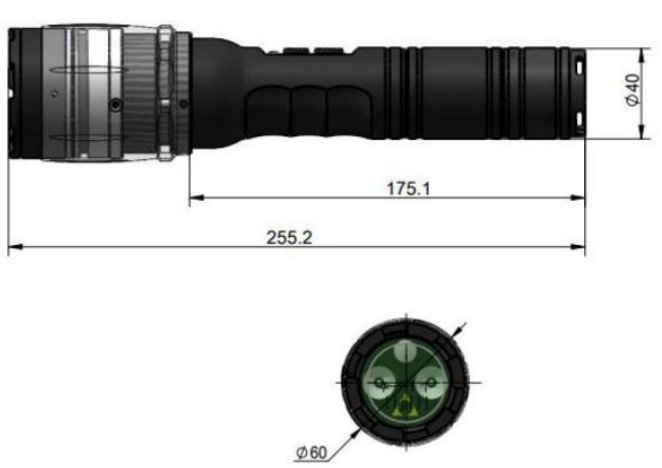

Dimensions (Unit: mm):
Product Specifications:
| Specification | G520D-YF33 |
| Wavelength | 505 - 532nm |
| Output Power | 850 mW |
| Laser Power Density (mW/cm簡) | 0.1 - 2.6 |
| Blasting Flash Frequency (Hz) | 7.5-8.5 |
| LED Irradiance(Lux) @10m | 100 - 150 |
| Beam Diameter (cm) | 15-30 |
| Working Distance (m) | 3 - 30 |
| Diameter (Tube) (mm) | 40 - 42 |
| Diameter (Head) (mm) | 60- 62 |
| Length (mm) | 255 - 260 |
| Weight (g) | 650 - 800 |

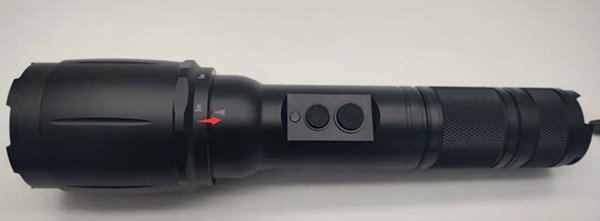

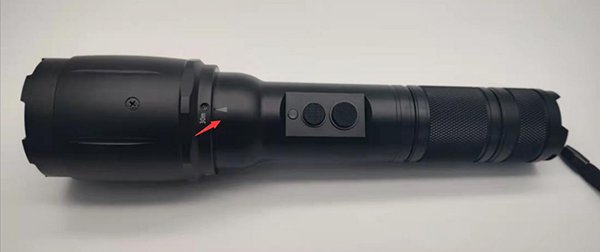

(1)The focusing mechanism is marked at the front end of the laser torch marked the distance 3m to
30m as the photo showed in next page.The focusing mechanism can be rotated according to those
marked distances, then you can find the beam size has been adjusted to the best around 30cm at
these distances.
(2) Batter is not included when delivery.
