Features
l DPSS Laser
l 589nm Yellow Laser
l High Stability
l 4.2μm Single Mode Fiber Coupled
Contact Us
589nm
Features
l DPSS Laser
l 589nm Yellow Laser
l High Stability
l 4.2μm Single Mode Fiber Coupled
Product Details:

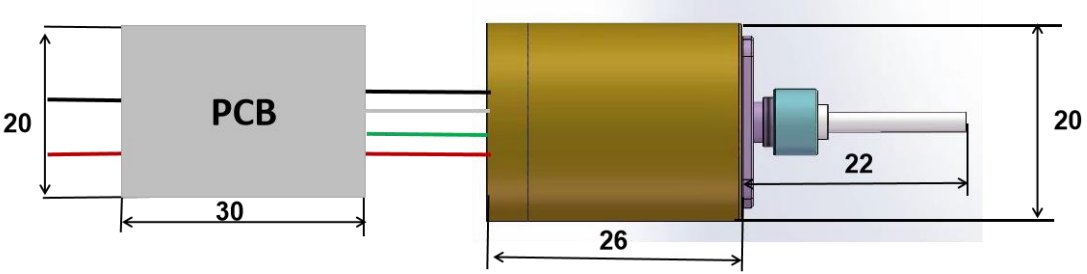

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y589D001-20x26-SMF |
| Wavelength | 589 ± 3 nm |
| Output Power after fiber (mW) | 1 mW |
| M² | 1.2 |
| Laser Class | 3R |
| Fiber Type | 4.2um with 0.9mm loose tube |
| Numerical Aperture | 0.12 |
| Fiber Length (m) | 0.3 - 1 |
| Fiber Termination | FC/PC connector |
| Laser Drive Modes | CW |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | ≤ 200 |
| Lifetime (hours) (MTTF at 25℃) | >5000 |
Picture:
