Y561D020-20x31.5-1-(10-50)-10
Features:
· Fast Rise Time
· High Reliability
· Yellow Green Laser
Product Details:

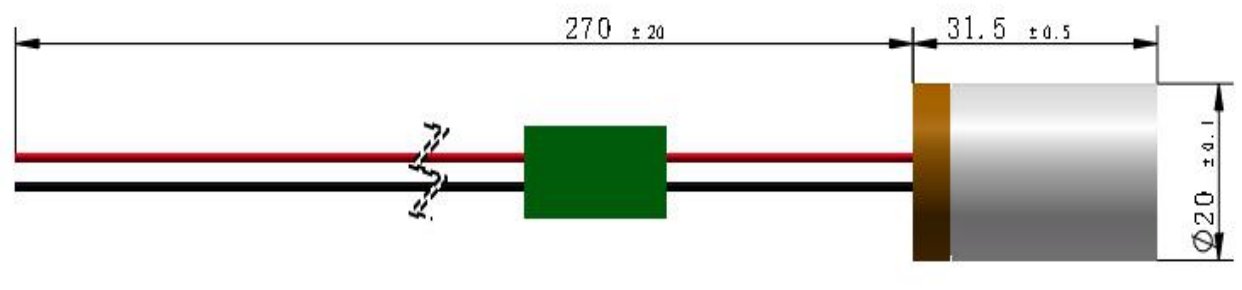

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y561D020-20x31.5-1-(10-50)-10 |
| Wavelength | 561 ± 2 nm |
| Output Power | 10 - 20 mW |
| Spatial Mode | TEM00 |
| Laser Class | 3B |
| M² (Beam Quality) | < 1.4 |
| Beam Diameter at Output Window (mm) | < 5 |
| Beam Asymmetry | ≤ 1:1 |
| Residual IR | 1% |
| Beam Divergence (full-angle) (mrad) | ＜1.5 |
| Warm-Up Time (seconds) | ＜ 0.5 |
| Polarization Ratio | ＞ 100:1 |
| Laser Drive Modes | CW |
| Operating Temperature (℃) | 10 to 50 |
| Storage Temperature (℃) | -20 to 60 |
| Weight (g) | < 35 |
| Lifetime (hours) (MTTF at 25℃) | >5000 |
