Features
· 850nm Diode Laser
· 4um SM Fiber
· Fast Rise Time
Contact Us
Product Details:

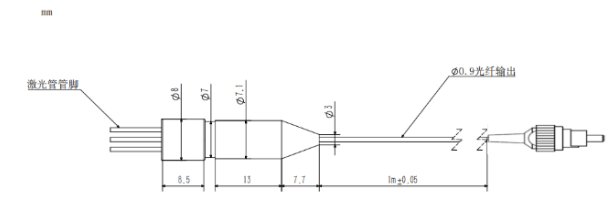

Dimensions (Unit: mm):
Product Specifications:
| Specification | IR850-SMF80 |
| Wavelength | 850 nm |
| Output Power(mW )@25℃ | 80 mW |
| M² | <2.5 |
| Laser Class | 3B |
| Fiber Type | 4./125um with 900um loose tube |
| Numerical Aperture | 0.13 |
| Fiber Length (m) | 1 - 1.1 |
| Fiber Termination | FC/PC connector |
| Laser Drive Modes | CW |
| Storage Temperature (℃) | -40 to 85 |
| Weight (g) | 10 |
Beam Picture：

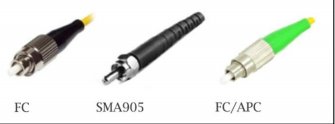

Fiber Connector Picture：
