Features:
· DPSS Laser
· 50mW@545nm
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Contact Us
G545D50-18x50-30-00
Features:
· DPSS Laser
· 50mW@545nm
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Product Details:

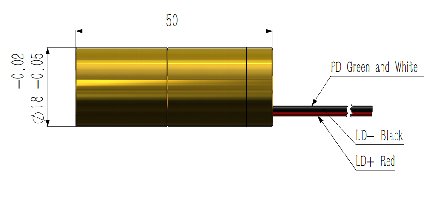

Dimensions (Unit: mm):
Product Specifications:
| Specification | G545D50-18x50-30-00 |
| Wavelength | 545 ±2 nm |
| Output Power (mW) from -30 to 50℃ | 50 ±15 mW |
| Power Stability at 25℃ (RMS) | < ±5% |
| Output Power Mode | CW |
| Laser Class | 3B |
| Beam Divergence (mrad) | < 30 |
| Beam Diameter at Output Window (mm) | < 1 |
| Beam Mode Transverse | near TEM00 |
| Polarization Ratio (Linear) | > 100:1 |
| Residual IR | < 1% |
| Storage Temperature (℃) | -40 to 60 |
| Rise Time (seconds) | < 1 |
| Weight (g) | < 80 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
