Applications:
· Laser Printing
· Spectroscopy
· Cell Sorting
· DNA Sequencing
· Wafer Inspection
· Particle Counting
Features:
· Ultra Compact
· Low Noise
· Excellent
· Power Stability Long Lifetime
Contact Us
SLM-G532-200-PL
Applications:
· Laser Printing
· Spectroscopy
· Cell Sorting
· DNA Sequencing
· Wafer Inspection
· Particle Counting
Features:
· Ultra Compact
· Low Noise
· Excellent
· Power Stability Long Lifetime
Product Details:
Product Specifications:
| Specification | SLM-G532-200-PL |
| Wavelength | 532± 0.3nm |
| Output Power | 200mW |
| Power Stability (rms, over 8 hours) | < 2% |
| Beam Mode Quality | M² < 1.2 |
| Beam Mode Transverse | TEM00 |
| Beam Mode Longitude | Single |
| Beam Diameter | 1± 0.2mm |
| Beam Symmetry | > 0.8:1 |
| Beam Divergence [1/e2 ] | < 2mrad |
| Warm up Time | < 30minutes |
| Expected Lifetime | 10,000 hours |
Longitudinal Mode (example):

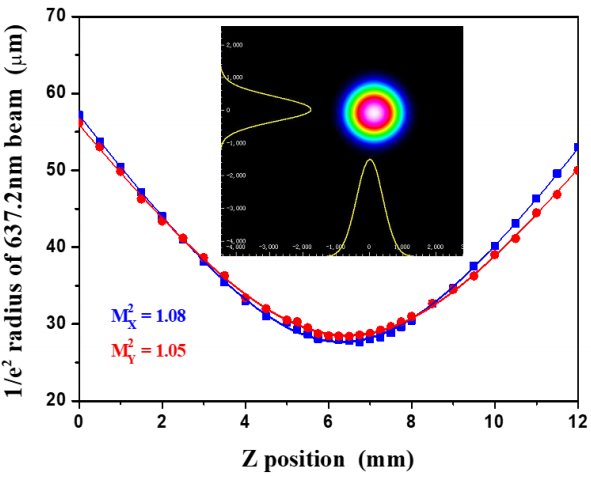

Transverse Mode and M2 (example):

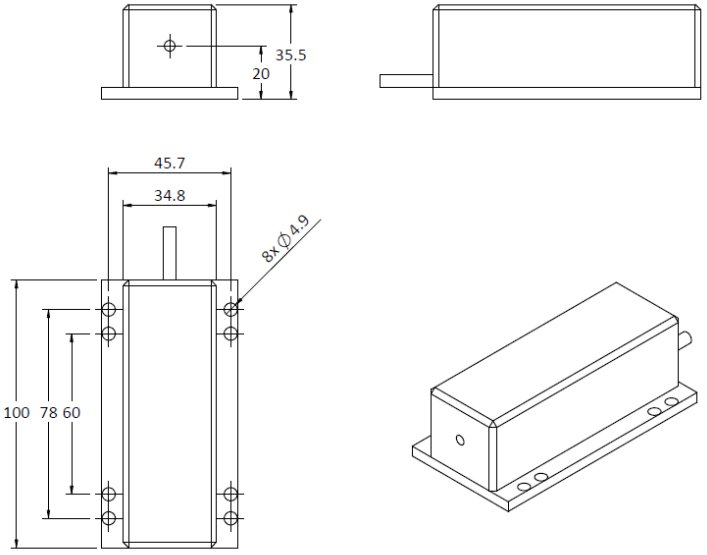

Drawing:
