561nm

1
1

561nm

Features:

· DPSS Laser

· 10mW@561nm

· Fast Rise Time

· High Reliability


Product Details:

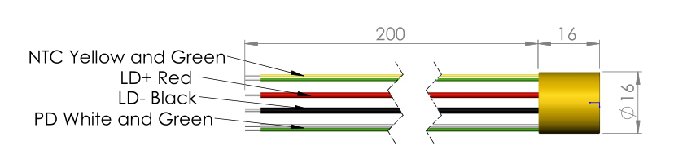

Dimensions (Unit: mm):



Product Specifications:


SpecificationY561D020-16x16-20
Wavelength561 ±2nm
Output Power (mW) at T℃15 - 20mW
Power Stability at T℃< ±5%
Output Power ModeCW
Laser Class3B
Beam Divergence (full angel) (mrad)17 - 20
Beam Waist (μm)< 200
Beam Diameter at Output Window (mm)0.5
Beam Roundness70%
Beam Mode Transversenear TEM00
Polarization Ratio (Linear)> 100:1
Power TypeAPC
Storage Temperature (℃)0 - 40
Lifetime (hours) (MTTF at 25℃)> 5000
Weight (g)< 100
