Features:
· DPSS Laser
· 10mW@561nm
· Fast Rise Time
· High Reliability
Contact Us
Product Details:

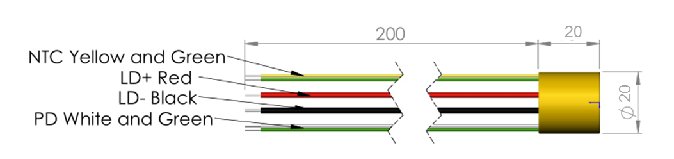

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y571D020-20x20-20 |
| Wavelength | 572 ±2nm |
| Output Power (mW) at T℃ | 15 - 20mW |
| Power Stability at T℃ | < ±5% |
| Output Power Mode | CW |
| Laser Class | 3B |
| Beam Divergence (full angel) (mrad) | 17 - 20 |
| Beam Waist (μm) | < 200 |
| Beam Diameter at Output Window (mm) | 0.5 |
| Beam Roundness | 70% |
| Beam Mode Transverse | TEM10 |
| Polarization Ratio (Linear) | > 100:1 |
| Power Type | APC |
| Storage Temperature (℃) | 0 - 40 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
| Weight (g) | < 100 |
