Features:
· DPSS Laser
· 100mW@545nm
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Contact Us
545nm
Features:
· DPSS Laser
· 100mW@545nm
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Product Details:

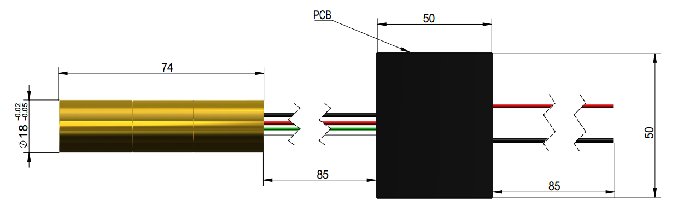

Dimensions (Unit: mm):
Product Specifications:
| Specification | G545D100-18x74-0.8-10 |
| Wavelength | 545 ±2nm |
| Power Stability at T℃ | < ±5% |
| Output Power Mode | PWM(70%-100%, adjustable) |
| Laser Class | 3B |
| Beam Divergence (full angel) (mrad) | < 0.8 |
| Beam Diameter at Output Window (mm) | < 6 |
| Beam Mode Transverse | near TEM00 |
| Polarization Ratio (Linear) | > 100:1 |
| Power Type | ACC / 7kHz input |
| Storage Temperature (℃) | -40 - 60 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
| Weight (g) | < 120 |
