Features
· DPSS Laser
· 10mW@561nm
· Fast Rise Time
· High Reliability
Contact Us
Product Details:

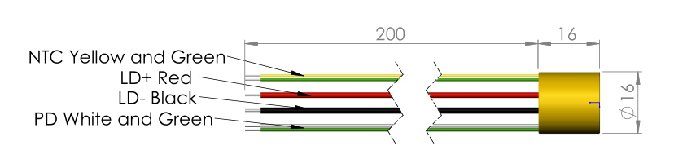

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y561D010-16x16-15 |
| Wavelength | 561 ±2 nm |
| Output Power | 10mW |
| Power Stability at T℃ | < ±5% |
| Output Power Mode | CW |
| Laser Class | 3B |
| Beam Mode Longitude | Multi |
| Beam Mode Transverse | TEM00 |
| Beam Roundness | 70% |
| Beam Diameter at Output Window (mm) | 0.5 |
| Beam Divergence (full-angle) (mrad) | 15 |
| Polarization Ratio (Linear) | >100:1 |
| Residual IR | <3% |
| Power Type | APC |
| Rise Time (s) at 0.5A | ＜ 0.2 |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | ≤ 100 |
