Features
· Fast Rise Time
· High Reliability
· Isolated Housing
· Wide Temperature Range
Contact Us
532nm
Features
· Fast Rise Time
· High Reliability
· Isolated Housing
· Wide Temperature Range
Product Details:

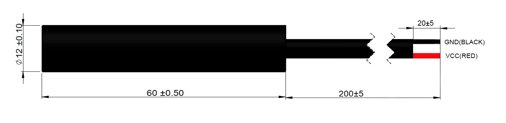

Dimensions (Unit: mm):
Product Specifications:
| Specification | G532D050-12x60-1.0-(0-40)-10 |
| Wavelength | 532 ±2nm |
| Output Power (mW) | 50 ± 15 |
| Power Stability at T℃ | < ±5% |
| Output Power Mode | CW |
| Laser Class | 3B |
| Beam Divergence (full angel) (mrad) | < 1 |
| Beam Diameter at Output Window (mm) | < 5 |
| Beam Mode Transverse | near TEM00 |
| Polarization Ratio (Linear) | > 100:1 |
| Power Type | APC |
| Storage Temperature (℃) | -20 - 60 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
| Weight (g) | 20 |
